Mastering Trane Chillers: Getting Started with Trane Chiller Software: TechView & Tracer TU (For UC800 Controllers)
CH530 Controllers
UC 800 Controllers
If you’ve serviced other chiller brands, but are new to working on Trane chillers, you may have found that if you want to complete commissioning, replace parts, replace controllers, and complete most service functions you need to use a one of two different service softwares via your laptop.
This is your quick-start guide to the two essential service tools, how to determine which ones you need, and how to get set up with the softwares.
You’ll learn what each software does, how to connect using the right cables, and how to get started fast.
🔧 What Is TechView & Why You Need It

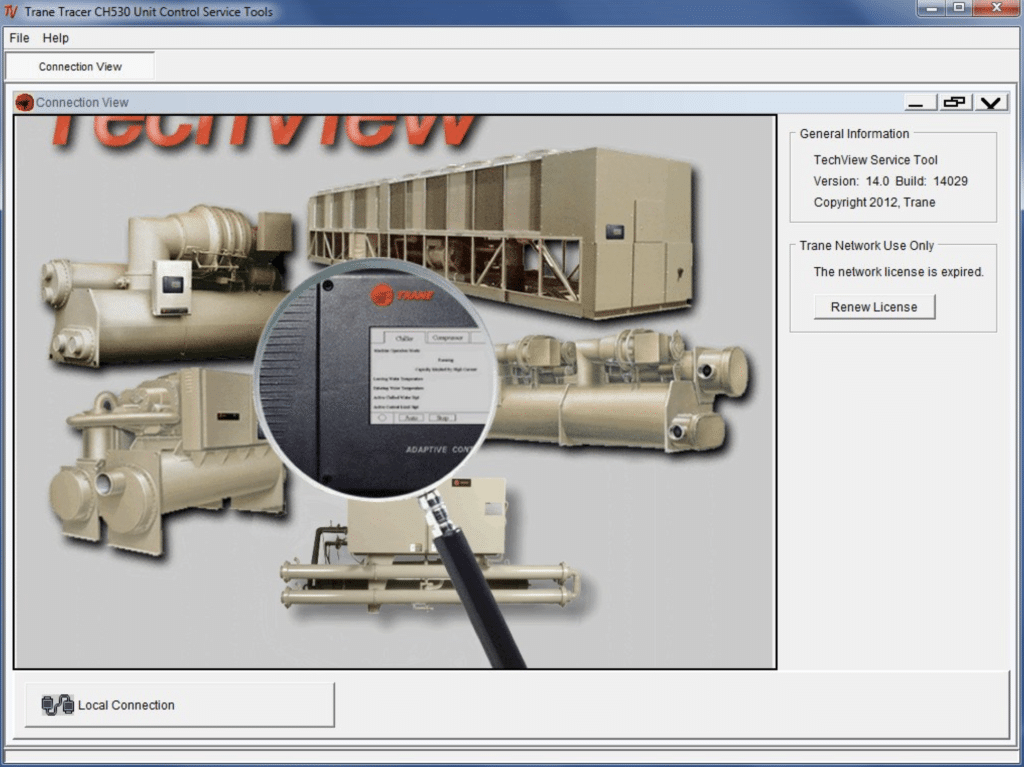

TechView Program
TechView is the PC-based service tool for Tracer CH530 chillers. It’s essential for:
- Software downloads
- Configuration and overrides
- Live and historical diagnostics
- LLID device binding
💡 Pro Tip: TechView v15 is FREE to download directly from Trane’s official website. No license needed.
Other names people Use For The CH530 Controller Also Known As / Notes Tracer CH530 CH530, Trane CH530, Tracer™ CH530 CH530 Controller Generic shorthand for the controller itself Dynaview Panel Refers to the built-in display/interface for CH530 CH-530 Alternate formatting used in older documentation or tech shorthand Tracer 530 Informal reference; not officially branded this way Older CH530 Style Controller Used to distinguish from newer UC800 systems
🔌 What You Need to Connect

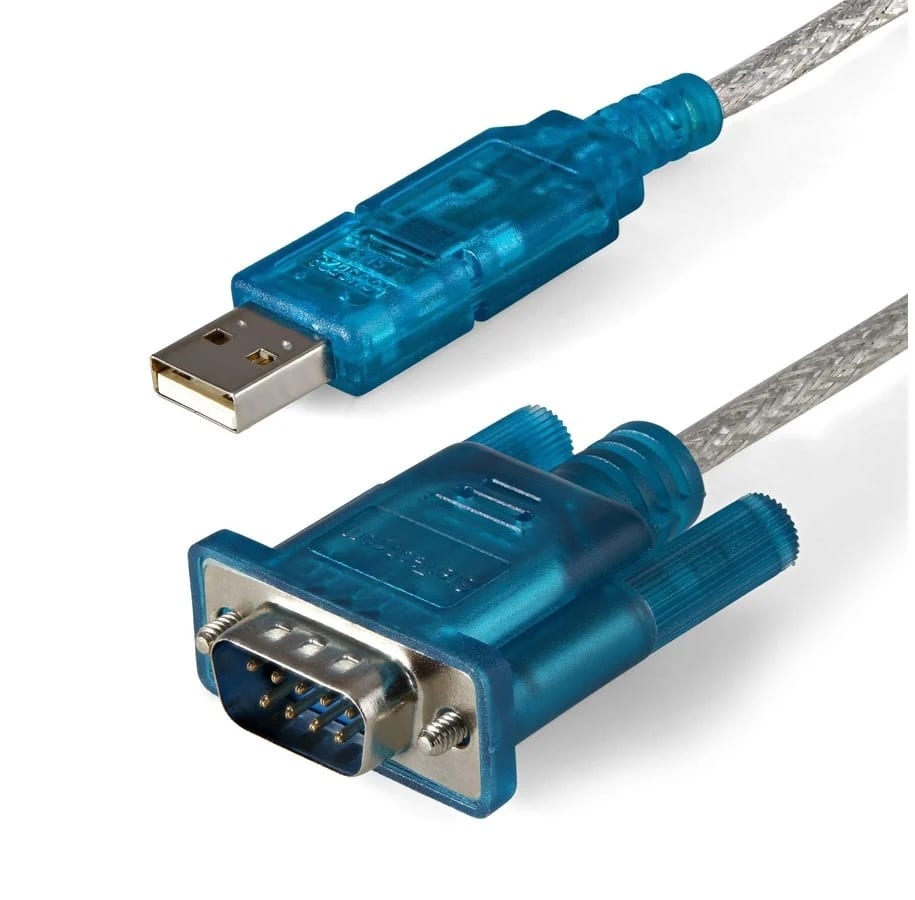

- Male DB9 Serial to USB-A cable (RS-232 Serial Converter)
- Plug into the panel behind the bottom access door
- USB-A plugs into your laptop
⚠️ Use the approved Trane USB-to-Serial adapter or the Startech adapter with the matching RS-232 (DB9) cable. Generic / cheap adapters often fail.
Also required:
- Java
- Windows PC
📸 Youtube videos We Made
How To Download Trane TechView
How To Bind Sensors, Transducers, EEV’s, etc.. with Trane Techview
🛠️ Sign Up Free — Learn What the Manuals Don’t Tell You
Inside our online portal, techs share real-world fixes, rare issues, and smart workarounds from jobs that don’t show up in training.
✔ Field-tested solutions from guys in the trenches
✔ Quick help when you’re stuck on something unusual
✔ Learn how other mechanics handle the oddball problems
🧠 Tracer TU — The Tool for UC800 Controllers

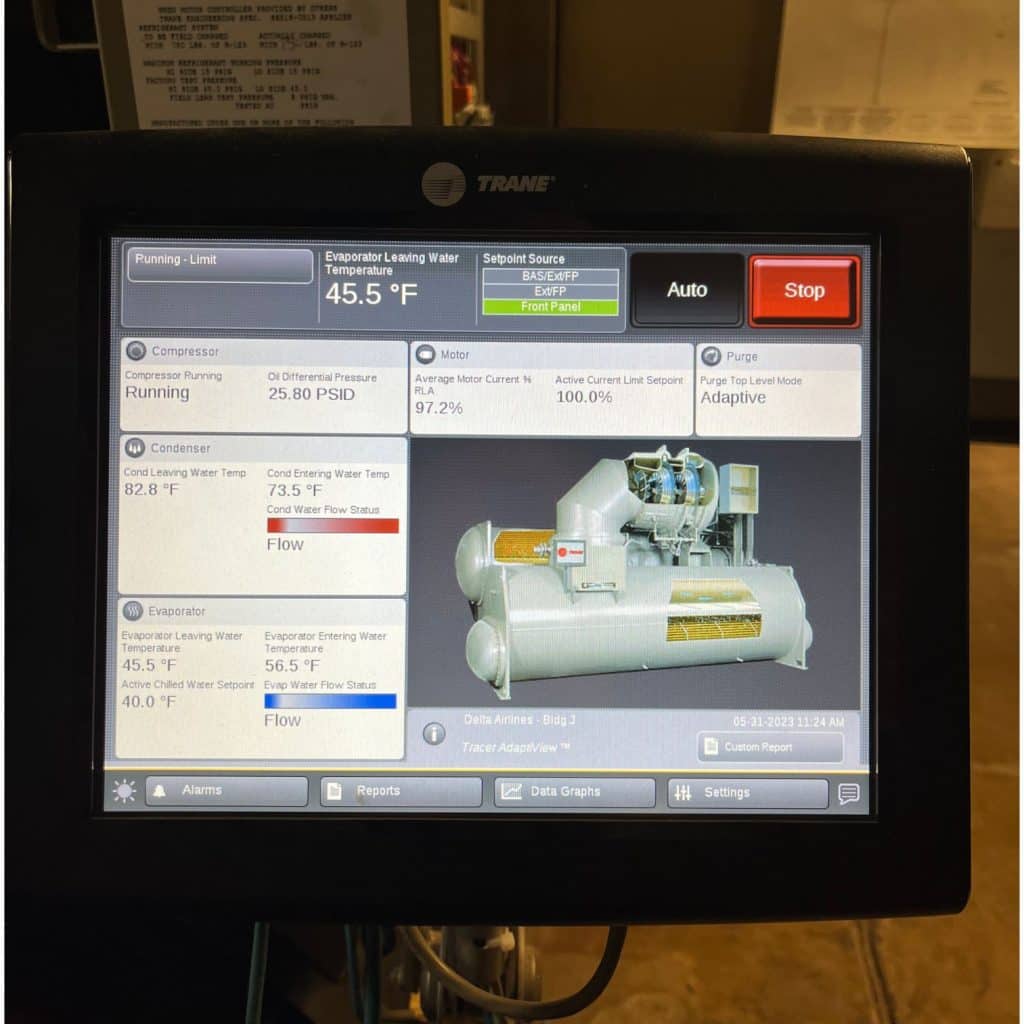

Tracer TU is the software for Trane chillers with UC800 AdaptiView controls. It handles:
- Status monitoring
- Alarm codes and logs
- Manual overrides
- Backups and firmware updates
- Pulling reports
🔌 What You Need to Connect
- USB-B to USB-A cable (the square connector like a printer cable)
- Plug into the service port on the UC800 panel
System Requirements:
- Windows 7 SP1 or Windows 10
- 4 GB RAM (8 GB+ recommended)
- .NET Framework 4.8
- Visual C++ Redistributables (included with TU installer)
📌 Note: Tracer TU requires a license or purchase. It’s not freely downloadable like TechView.
| Controller Name | Also Known As / Notes |
|---|---|
| Tracer UC800 | UC800, Trane UC800, Tracer™ UC800 |
| UC800 Controller | Common shorthand in field and manuals |
| AdaptiView Controller | Refers to the UC800 paired with the touchscreen interface |
| UC-800 | Alternate formatting sometimes used in documentation |
| Tracer TU Compatible | Often referenced this way in software tool guides |
| Trane Next-Gen Control | Used to distinguish from older CH530 systems |
| UC800 Symbio Chiller Controler | Informal, refers to the physical controller inside the panel |
⚙️ Quick Comparison: TechView vs. Tracer TU
| Feature | TechView (CH530) | Tracer TU (UC800) |
|---|---|---|
| Primary Use | Diagnostics, LLID binding, overrides, commissioning, etc.. | Full-service config, firmware, backups |
| Cable Needed | DB9‑to‑USB adapter (RS-232 Serial Converter) | USB‑B to USB‑A |
| Free to Download? | ✅ Yes | ❌ Requires license |
| Special Requirements | Java | .NET 4.8, Windows 10, 4GB+ RAM |
🪛 Step-by-Step: How to Hook Up
🔹 TechView (CH530)
- Download TechView v15 from Trane’s site
- Install Java JDK

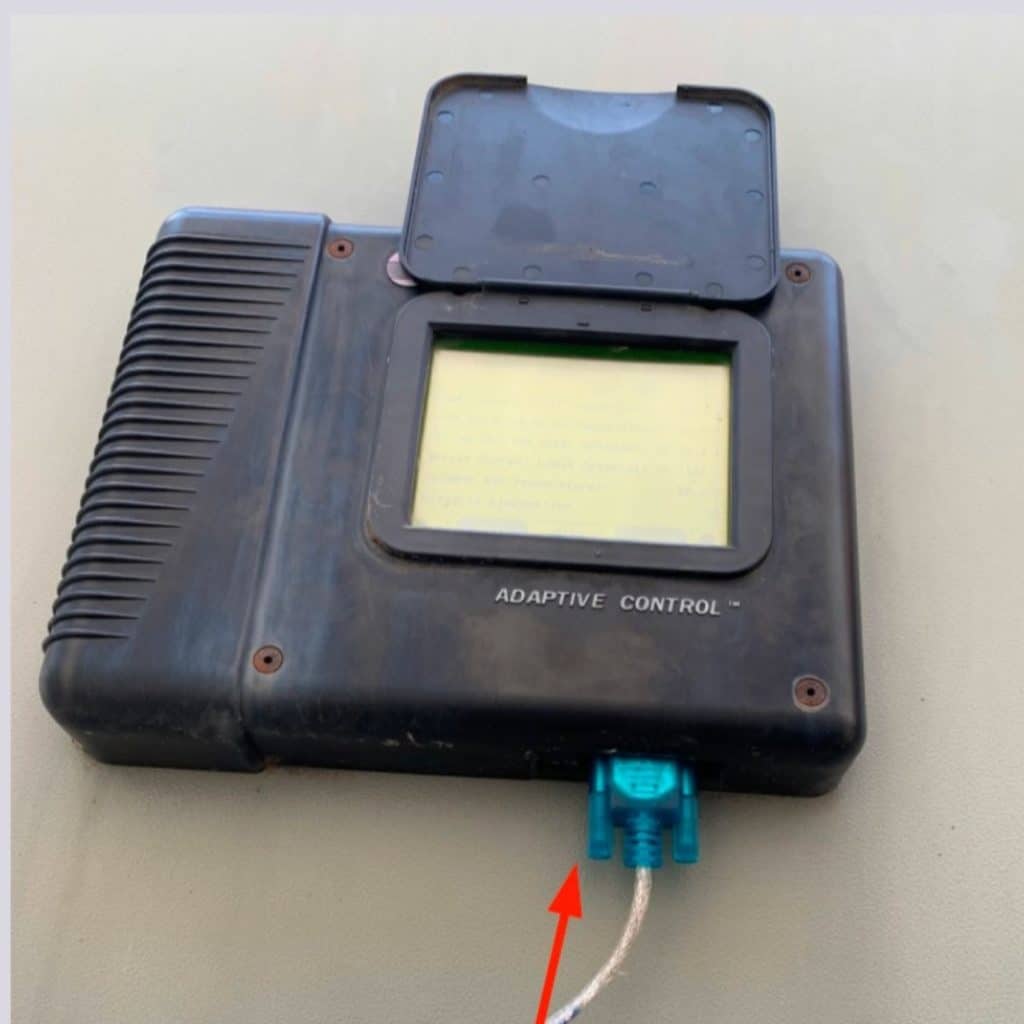

- Plug DB9 into Dynaview panel, USB-A into laptop
- Launch TechView and begin diagnostics
🔹 Tracer TU (UC800)
- Confirm system specs and install Tracer TU
- Purchase a license from Trane.
- Plug USB-B into UC800, USB-A into laptop
- Open Tracer TU and begin monitoring or configuration
🛠️ Learn What the Manuals Don’t Tell You — Sign Up Free
Inside our online portal, techs share real-world fixes, rare issues, and smart workarounds from jobs that don’t show up in training.
✔ Field-tested solutions from guys in the trenches
✔ Quick help when you’re stuck on something unusual
✔ Learn how other mechanics handle the oddball problems
Need help with your Chiller? Drop a screenshot in the chat, or question that you have and lets work together to get it online.
