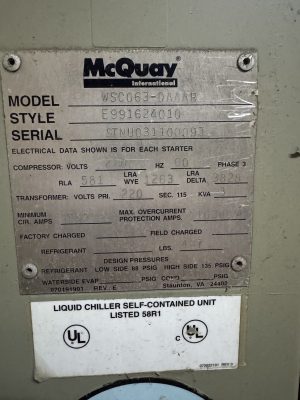

Wsc063
Hello
could you support me with the following diagram? I’m having problems with a mcquay wsc chiller because of the low engine current problem, at the time of checking I found that the % rla does not go up from 0% and when I want to see the electrical diagram there is no information why it is destroyed

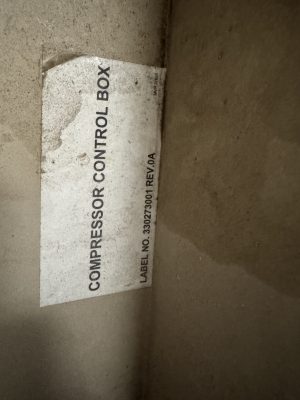

Label 330273001
Member Post, Member Post and 2 others7 Comments-
What a pain, I will see what I can find.
1 -
Can’t find the exact schematic.
Can you send me a photo of the starter tag?
1 -
Finally it gave the % rla, but now the equipment starts and after 15 seconds a fuse burns, so there is a short 🫠
-
@archu What a pain in the rear.
Does the starter panel have a Benshaw Tag?
Usually it’s inside the starter panel.
You can probably find some generic wiring schematics online, but the original, you will have to chat with Benshaw, or Daikin, I can’t find that drawing number in anything I have.
-
-
-
-
We still might be able to work through it.
What fuse is blowing?
-
